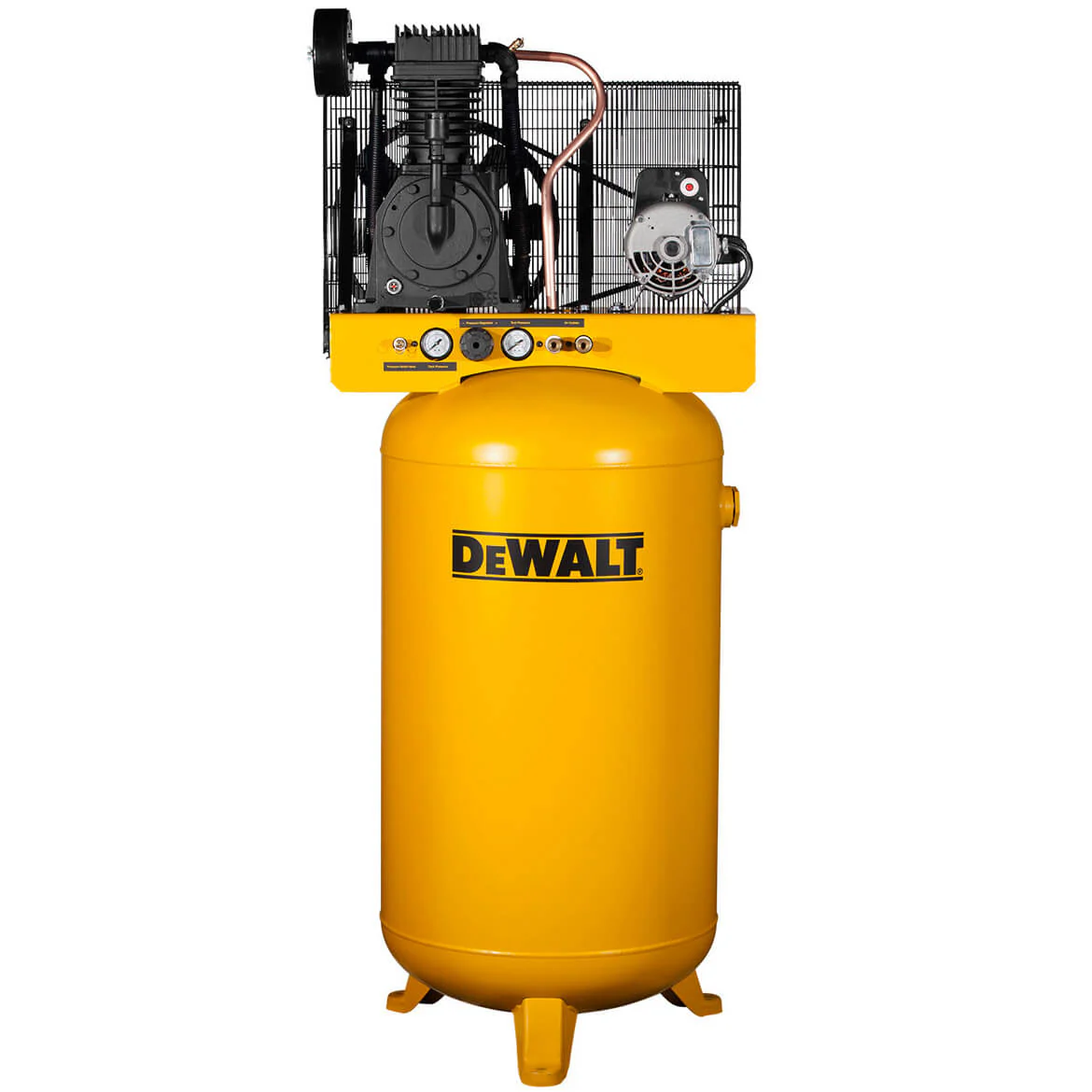

DeWALT DXCMV5048055 5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

$ 69.33
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    Features
    • 5 HP Electric Motor With Thermal Overload Protection
    • T.O.P.S. protects the motor from voltage fluctuations
    • Magnetic starter not required
    • Patented Two Stage Cast Iron Industrial Duty Pump Provides 17.9 CFM at 100 PSI for big jobs & multiple users
    • Patented Cast Iron Flywheel with Large fins for low pump RPM. improved cooling. longer pump life
    • Patented Asymmetrical. Deep Groove Cooling Fins
    • Cooler pumps last longer & run more effectively
    • Tank & output pressure gauges are large & easy to see
    • Easy access to pressure regulator & 2 quick-connect air outlets
    • ASME rated for safety; 175 PSI maximum pressure
    • Shipped With Synthetic Blend Compressor Oil
    • Easy to wire into your 230 volt. single phase system
    What's in The Box
    • Two-Stage Air Compressor
    • Synthetic Oil
    • Owners Manual
    Warranty
    • 1 Year Factory Warranty
    • 30 Day Satisfaction Guaranteed
    Specifications
    Running HP: 5 HP
    Voltage: 230 Volt AC
    Phase: 1-Phase
    Amp Draw: 28 Amps*
    Recommended Breaker: 60 Amp Breaker*
    Pump Specifications
    CFM @ 90 PSI: 17.9
    CFM @ 175 PSI: 17.0
    Max PSI: 175 PSI
    Pump Material: Solid Cast Iron
    Pump Type: Two-Stage
    Pump Drive: Belt Drive
    Oil Type: Oil Lubricated
    Oil System: Splash Lubricated
    Low Oil Shut-off: No
    Oil Sight Glass: Yes
    After Cooler: No
    Tank Specifications
    Tank Size: 80 Gallons
    Tank Outlet: 3/4 Inch
    Tank Orientation: Vertical
    Electronic Drain Valve: No
